titanium fittings specification
- Product No.：2023101416437
- Material Grade：titanium grade 1, titanium grade 2, titanium grade 7
- Size：1/2 inch to 48 inches
Hengze Industry Co., Ltd. is a professional titanium fittings manufacturer in Baoji, China.
Our Titanium Fittings are manufactured in accordance with ASTM B363, titanium fittings specifications are complied with ANSI/ASME B16.9

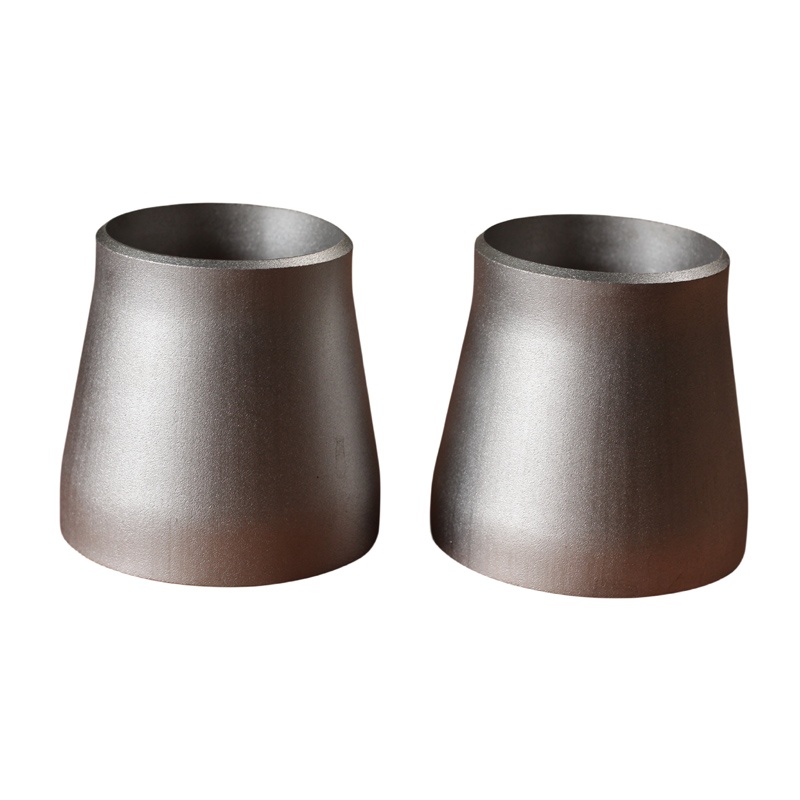

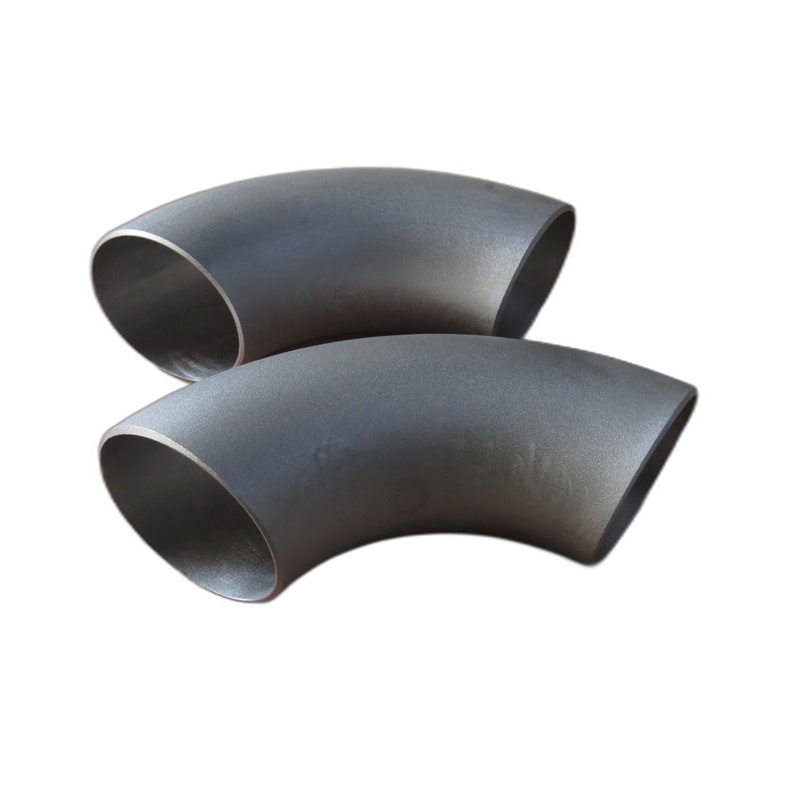

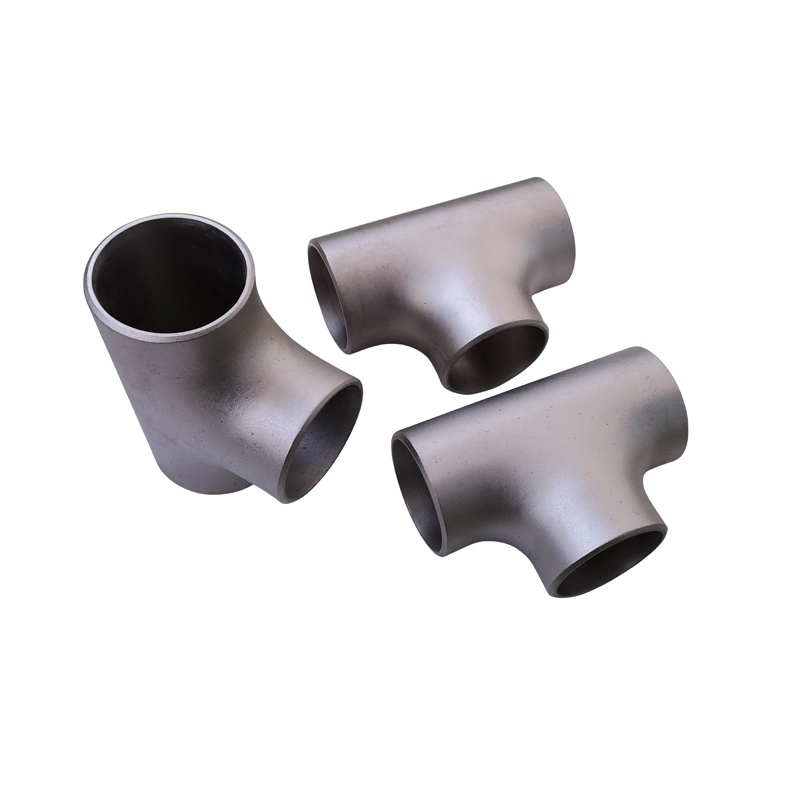

Titanium fittings can refer to various types of pipe fittings made from titanium, such as titanium elbows, tees, reducers, and flanges. The specifications for titanium fittings may vary depending on the specific application and industry requirements. However, here are some general specifications commonly used for titanium fittings:
Our Titanium Fittings are manufactured in accordance with ASTM B363, titanium fittings specifications are complied with ANSI/ASME B16.9
Titanium fittings can refer to various types of pipe fittings made from titanium, such as titanium elbows, tees, reducers, and flanges. The specifications for titanium fittings may vary depending on the specific application and industry requirements. However, here are some general specifications commonly used for titanium fittings:
Material: Titanium fittings are usually made from commercially pure titanium or titanium alloys, such as Grade 2 (Ti-CP2), Grade 5 (Ti-6Al-4V), or Grade 9 (Ti-3Al-2.5V).
Size: Titanium fittings are available in various sizes, ranging from small diameters to large diameters, typically measured in inches (e.g., 1/2", 3/4", 1", etc.) or millimeters (e.g., 20mm, 25mm, 50mm, etc.).
Pressure ratings: Titanium fittings are designed to withstand specific pressure requirements. The pressure ratings can vary depending on the fitting type, size, and industry standards. However, commonly used pressure ratings for titanium fittings range from class 150 to class 3000.
Wall thickness: Titanium fittings have different wall thicknesses depending on the application and pressure rating. The wall thickness is typically specified in inches or millimeters.
Standards: Titanium fittings are manufactured according to various international standards, such as ASTM (American Society for Testing and Materials), ASME (American Society of Mechanical Engineers), MSS (Manufacturer's Standardization Society), or ISO (International Organization for Standardization) standards.
Titanium fittings specifications can be from 1/2" to 48" with wall thickness from Schedule 5S to Schedule 80S.
The most commonly used titanium fittings specifications include 1/2" Schedule 10S (21.3*2.11mm), 1" Schedule 10S (33.4*2.77mm), 3" Schedule 10S (88.9*3.05mm), 4" Schedule 10S (114.3*3.05mm) etc
Titanium fittings specifications can be from 1/2" to 48" with wall thickness from Schedule 5S to Schedule 80S.
The most commonly used titanium fittings specifications include 1/2" Schedule 10S (21.3*2.11mm), 1" Schedule 10S (33.4*2.77mm), 3" Schedule 10S (88.9*3.05mm), 4" Schedule 10S (114.3*3.05mm) etc
