Titanium tube sheets for heat exchangers
- Product No.：titanium tube sheets
- Material Grade： Gr1, Gr2, Gr5, Gr7, Gr11, Gr12, Gr16
- Size：OD: 100～2500mm, Thickness: 10～100mm
- Test：PMI, UT
Grade: Gr1, Gr2, Gr5, Gr7, Gr11, Gr12, Gr16 etc
Size: OD: 100～2500mm, Thickness: 10～100mm
Standard: ASTM B265, ASTM B381
Description

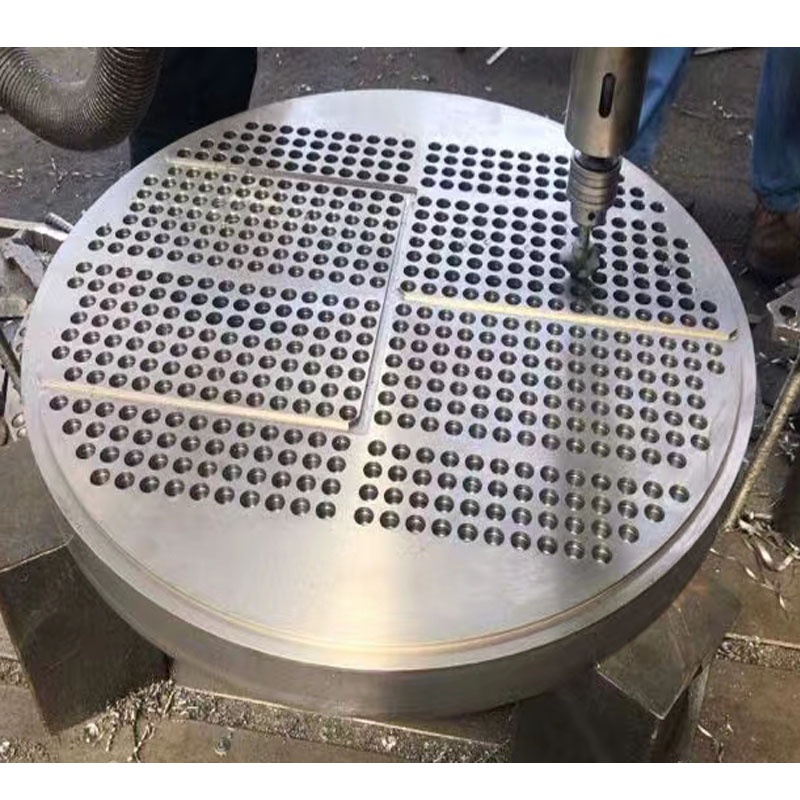

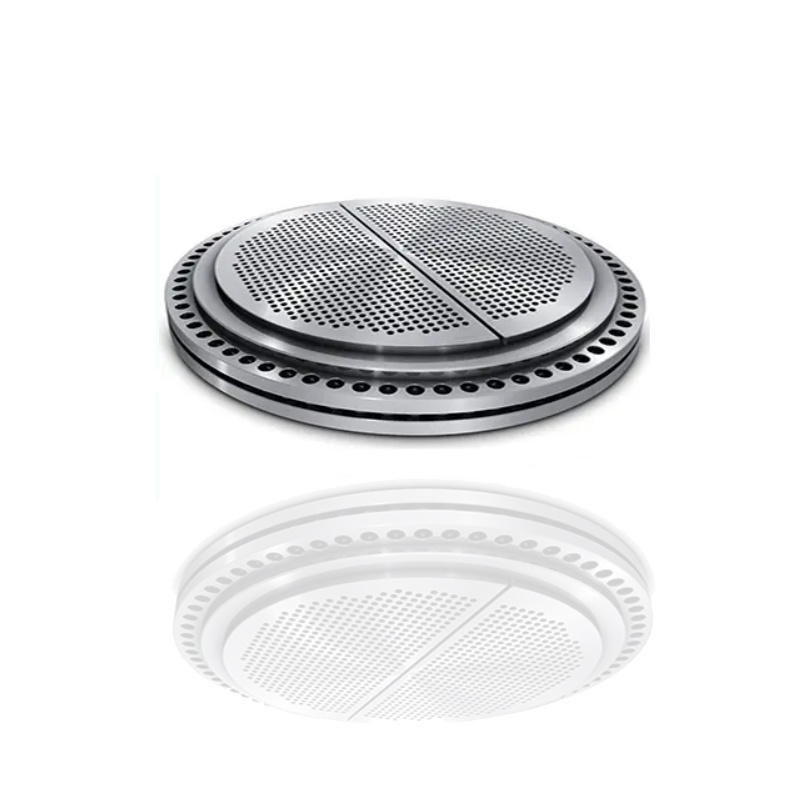

Titanium Tube sheet is one of the main components in a shell & tube heat exchanger, have holes drilled to accept a series of tubes inside of a enclosed tubular pressure vessels, titanium tube sheet itself serves as a supporting element in heat exchangers and boilers. Titanium tube sheets have various sizes and a series of holes are done to create a place where the tube ends are welded. Titanium tube sheets are also called titanium tube plates.
Applications
Used for shell and tube heat exchanger, boiler, pressure vessel, steam turbine, sea-water desalination, etc.
Specification
|
Grade |
Status |
Specification |
|
|
Gr1, Gr2, Gr5 Gr7, Gr11, Gr12, Gr16 |
Hot Forged Cold Rolled(Y) Annealed(M) Solution treatment (ST) |
OD (mm) |
Thickness(mm) |
|
100～2500 |
10～1oo |
||
Chemical composition
|
Grade |
Chemical composition, weight percent (%) |
||||||||||||
|
C (≤) |
O (≤) |
N (≤) |
H (≤) |
Fe (≤) |
Al |
V |
Pd |
Ru |
Ni |
Mo |
Other Elements Max. each |
Other Elements Max. total |
|
|
Gr1 |
0.08 |
0.18 |
0.03 |
0.015 |
0.20 |
— |
— |
— |
— |
— |
— |
0.1 |
0.4 |
|
Gr2 |
0.08 |
0.25 |
0.03 |
0.015 |
0.30 |
— |
— |
— |
— |
— |
— |
0.1 |
0.4 |
|
Gr4 |
0.08 |
0.25 |
0.03 |
0.015 |
0.30 |
— |
— |
— |
— |
— |
— |
0.1 |
0.4 |
|
Gr7 |
0.08 |
0.25 |
0.03 |
0.015 |
0.30 |
— |
— |
0.12～0.25 |
— |
0.12～0.25 |
— |
0.1 |
0.4 |
|
Gr11 |
0.08 |
0.18 |
0.03 |
0.15 |
0.2 |
— |
— |
0.12～0.25 |
— |
— |
— |
0.1 |
0.4 |
|
Gr12 |
0.08 |
0.25 |
0.03 |
0.15 |
0.3 |
— |
— |
— |
— |
0.6～0.9 |
0.2～0.4 |
0.1 |
0.4 |
|
Gr16 |
0.08 |
0.25 |
0.03 |
0.15 |
0.3 |
— |
— |
0.04～0.08 |
— |
— |
— |
0.1 |
0.4 |
Physical properties
|
Grade |
Physical properties |
||||||
|
Tensile strength Min |
Yield strength (0.2%, offset) |
Elongation in 50mm Min (%) |
|||||
|
ksi |
MPa |
Min |
Max |
||||
|
ksi |
MPa |
ksi |
MPa |
||||
|
Gr1 |
35 |
240 |
20 |
138 |
45 |
310 |
24 |
|
Gr2 |
50 |
345 |
40 |
275 |
65 |
450 |
20 |
|
Gr4 |
80 |
550 |
70 |
483 |
95 |
655 |
15 |
|
Gr7 |
50 |
345 |
40 |
275 |
65 |
450 |
20 |
|
Gr11 |
35 |
240 |
20 |
138 |
45 |
310 |
24 |
|
Gr12 |
70 |
483 |
50 |
345 |
— |
— |
18 |
|
Gr16 |
50 |
345 |
40 |
275 |
65 |
450 |
20 |
Tests:
Mechanical property
Chemical composition
Ultrasonic test etc
Packaging
IPPC standard package or special package upon requests.
